Clean Up and Collisions

Last time I gave Ferb a background in which to run through. However, he runs through the rocks we placed and can't jump high enough. What I've created feels like the start of a game, so I think I'll take a break and fix the two issues. After that, I'll add a few things to make what I have feel more like a game and less like an experiment.



The Story So Far




I've:

  • created a sprite and animated it to run across the screen.
  • added sound effects for running and jumping.
  • created obstacles and a background.

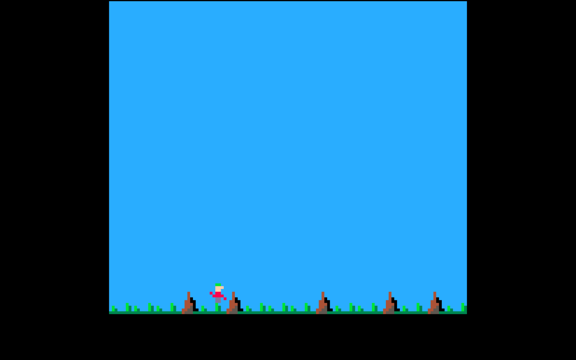

As a reminder here is what I have.

Screen Shot 2021-03-03 at 10.02.27 AM


Fixing the Hop

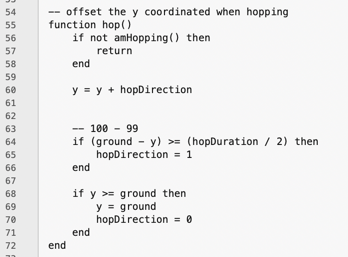

The first thing I want to do is fix the height of the hop. Here is the function:

Screen Shot 2021-03-10 at 8.02.42 AM

This should be an easy fix. I use the variable hopDirection as a flag to indicate whether Ferb is going up or down. I'm also using it as the offset to y, that is how high to jump. That's not good. I need to split that functionality. I'll create a variable hopHeight and multiply it by hopDirection. That should fix the poor design as well as the hop problem.

When I do this, and with playing around with the value of hopHeight, I settle on a value of 5 which gives Ferb enough altitude. But now, it's obvious he's not traveling forward far enough to clear the rock.

Screen Shot 2021-03-03 at 10.02.27 AM

Here's where Ferb moves forward.


Screen Shot 2021-03-10 at 8.16.22 AM

Changing this to get Ferb to move differently when hopping would be bad design. That is, I'd have to check to see if Ferb is in the middle of a hop and do something. The function hop already handles hopping. I'll rework the hop function above, and leave moveLeftToRight alone.

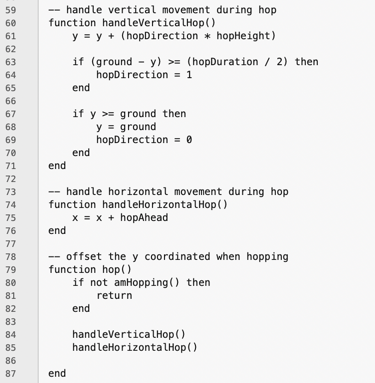

Here's my new code.

Screen Shot 2021-03-10 at 8.28.12 AM

I've refactored the vertical code into its own function and added a new function handleHorizontalHop which uses a new variable hopAhead. This does the same thing that hopHeight does, but in a horizontal direction. Testing different values for hopAhead, I settle on 5.

This is the result.


Screen Shot 2021-03-03 at 10.02.27 AM


That fixes the first problem. The hopping isn't physics-accurate, but it's good enough for this simple game.

Ferb, however, still runs through rocks. It's time for a diversion.

Collision Detection

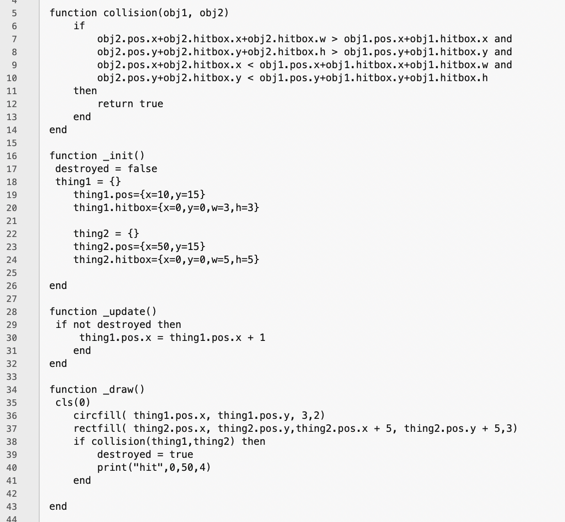

What I need is a way to detect when Ferb collides with something. I need a collision detection function. I'm going to leave Ferb for a while and create a test program.



Screen Shot 2021-03-10 at 8.55.58 AM


My function collision sees if two objects on the screen have collided. I'm using a very simple technique known as hitbox testing. Each object is represented as a rectangle at a given position. The collision function sees if the two rectangles overlap. If they do, it returns true meaning there has been a collision.

In the _init function I create a flag that indicates the two objects have collided (and destroyed). I then create two Lua tables (more info here) Each table represents an object on the screen and has a position and a hitbox. The first object will be a circle, the second a square. Each object has a rectangular hit box with a position and a width and height.

One thing to remember is hit box testing tests rectangles, not the actual shape of the object.

In the _update function I see if the objects are destroyed, if not, I move the circle closer to the square.

In the _draw function I draw both objects then test for a collision. If the objects have collided, I set my flag and print a message on the screen.

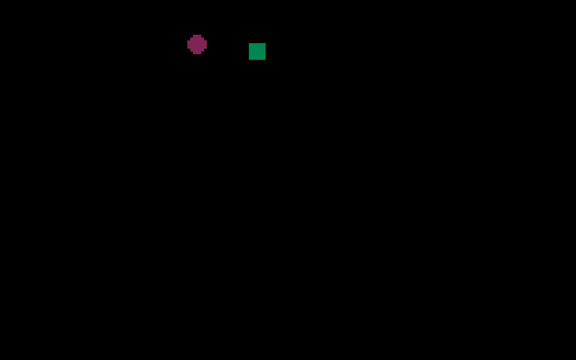

This is just a test program to see if my collision function does what I think it does. Here is the result.


Screen Shot 2021-03-10 at 9.08.58 AM

It works!

Now I can rework the Ferb code to use hit boxes. I'll leave that for next time. Instead, I want to make Ferb more of a game. I want to give him more things to avoid.

The Sky Is Falling

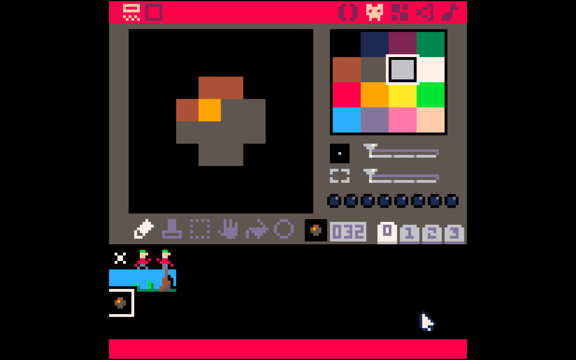

I think I want to rain meteors down on Ferb as he runs. In the sprite editor, I've created a new sprite that represents a meteor.


Screen Shot 2021-03-10 at 9.28.27 AM

Now I just need the code to drop meteors. I'll start simply by only dropping one. I need to initialize some new variables in _init.

Screen Shot 2021-03-10 at 9.34.23 AM

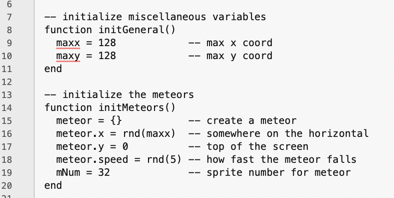

I'm calling two new functions: initGeneral will be used to initialize miscellaneous variables, initMeteors will handle the falling rocks. Here they are.

Screen Shot 2021-03-10 at 9.34.12 AM

I'm using a table to store a single Meteor. In line 16 I set the meteor's x coordinate to a random number up to the maximum x coordinate. On line 18 I get a random speed for the meteor. NOTE TO SELF: I need to rework Ferb so he uses a table as well.

I need to move the meteor in _update.

Screen Shot 2021-03-10 at 9.38.51 AM

That's easy. Now I just need to write updateMeteors.


Screen Shot 2021-03-10 at 9.41.27 AM

Again, I'm starting simply. All this does is move the meteor down based on its speed. If it hits the ground (I don't need to use my collision function here) I just reset the meteor back to the top of the screen. I'll probably do something different later.

Finally, I need to draw the meteor.

Screen Shot 2021-03-10 at 9.43.21 AM


Screen Shot 2021-03-10 at 9.43.32 AM

In drawMeteors I'm just drawing my one meteor. I'll change this once I know it works the way I want.

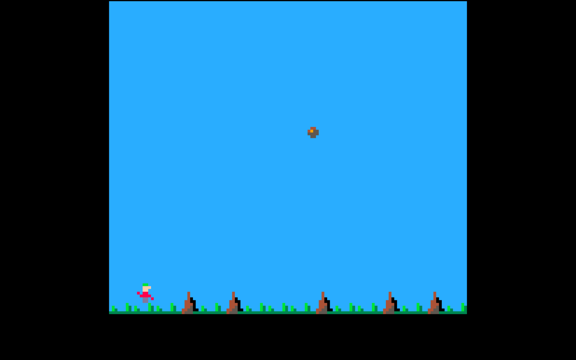

That's all we need. Let's run it.


Screen Shot 2021-03-10 at 9.45.50 AM


That's what I want.

Next time, I'll handle collisions between Ferb and the rocks, Ferb and the meteor(s), and the meteor(s) and the ground.


Here is the cart so far:

ferb-meteor.p8
